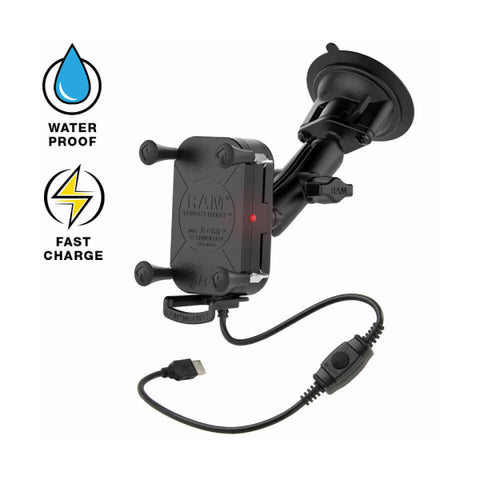

RAM® Tough-Charge™ 15W Wireless Charging Suction Cup Mount (RAM-B-166-UN12W-1)
RAM® Tough-Charge™ 15W Wireless Charging Suction Cup Mount (RAM-B-166-UN12W-1)
SKU:RAM-B-166-UN12W-1
The RAM® Tough-Charge™ with X-Grip® Technology is the world's first patented, universal waterproof wireless charging cradle for phones. Designed with spring-loaded RAM® X-Grip® Technology, this cradle features an 'X' design that expands and contracts to secure nearly any phone while taking advantage of Qi-compatible wireless phone charging. All four arms feature rubber-coated caps that hold your phone firmly in place, and the open design keeps buttons and switches accessible on the sides of phones. To insert your device, simply squeeze the arms on one side of the cradle and place your phone inside before releasing the arms. This Qi wireless charging cradle ensures your compatible phone charges no matter what position it’s placed at. For added security and peace of mind, a device tether is recommended for outdoor applications. In addition, a support leg can be adjusted to the ideal position or removed altogether. This RAM® Tough-Charge™ with X-Grip® Technology wireless charging suction cup kit includes a B-size diamond base featuring a 1” rubber ball, medium-length double socket arm, and RAM® Twist-Lock™ suction cup. The connected Type-A male pigtail connector features an in-line switch that allows you to turn off the wireless charging module when not in use. Attach the pigtail to the included 1.2m Type-A male to Type-A female extension cable for in-vehicle charging.
Features
Features
- Waterproof Qi-compatible wireless phone charging cradle features spring-loaded RAM® X-Grip® technology and 15W maximum output
- Kit for vehicles includes wireless cradle, B size diamond ball base, medium double socket arm, and RAM® Twist-Lock™ suction cup
- Made of powder-coated, marine-grade aluminium, stainless steel components, and high-strength composite for durability and reliability in the most demanding environments
- RAM® Mounts backed by a lifetime warranty, RAM® electronics backed by a 1-year warranty with proof of purchase required
Tech Specs
Tech Specs
- Holder Dimension Width Range: 2.375" - 3.25"
- Holder Dimension Depth Range: .875" max
- Suction Size: 3.3" Diameter
- Socket-to-Socket Length: 3"
- Ball/Socket Size: B Size (1")
- Weight Capacity Standard Use: 2 lbs
- Weight Capacity Heavy-Duty Use: 1 lb
- Materials: Marine-grade aluminium, High strength composite, Stainless steel
- Input Power:5V-2A; 9V-1.67A
- Output: 15W
- Conversion Efficiency: 85% Max
- Maximum Case Thickness: 6mm
- Working Frequency: 110-205KHZ
- Product Standard: WPC v.1.2.4
- Qi Compatible
- Compatible with QC2.0/QC3.0 power supplies
- Connector Type: USB Type-A Male
- Input Cable Length: 20" with optional 1.2M extension cable
- Compliance: Over current protection short circuit protection and over temperature protection
- Certifications: FCC, IC, KC, CE, E-Mark, WEEE, RCM, and RoHS Compliant
- Weight: 1.58 lbs.
- Warranty Status: 1 year warranty
- For open cockpit applications (i.e. motorcycles, ATVs, boats, etc.) apply silicone grease to the USB Type-A male & female connector to protect the connections and prevent corrosion. Failure to do so will void warranty.
- Exposure to vibrations, like those generated by high-powered motorcycle engines, might impact iPhone cameras.
- Size of case may affect compatibility. Not compatible with phone cases containing metal. This holder will not charge phones that do not have built-in wireless charging capabilities, such as the Apple iPhone 7 or Samsung Galaxy S5.
- This charger is not recommended for Apple iPhone 12, 13 & 14. These iPhone models support two wireless charging technologies: Apple’s proprietary “Magsafe” and WPC (Wireless Power Consortium) “Qi” standard. MagSafe can charge iPhones ~33-45% faster than the WPC Qi standard. RAM Wireless charging products provide WPC Qi BPP and EPP standard today up to 15W.
Compatibility
Compatibility
- Apple: iPhone 11, iPhone 11 Pro, iPhone 11 Pro Max, iPhone 8, iPhone 8 Plus, iPhone SE, iPhone X, iPhone Xr, iPhone Xs, iPhone Xs Max
- Blackberry: Evolve X
- Google: Pixel 3, Pixel 3 XL, Pixel 4, Pixel 4 XL
- Huawei: Mate 20, Pro P30 Pro
- LG: G6, G6+, G7 ThinQ, G8 ThinQ, G8S ThinQ, V30, V35 ThinQ, V40 ThinQ, V50 ThinQ
- Nokia: 8 Sirocco, 9 PureView, Razer Phone 2
- Samsung: Galaxy Note 10, Galaxy Note 10 Plus, Galaxy Note 5, Galaxy Note 8, Galaxy Note 9, Galaxy S10, Galaxy S10 5G, Galaxy S10+, Galaxy S10e, Galaxy S20, Galaxy S20+, Galaxy S20 Ultra 5G, Galaxy S21 5G, Galaxy S21+ 5G, Galaxy S21 Ultra 5G, Galaxy S22 5G, Galaxy S22+ 5G, Galaxy S22 Ultra 5G, Galaxy S23, Galaxy S23+, Galaxy S23 Ultra, Galaxy S6, Galaxy S6 Edge, Galaxy S6 Edge+, Galaxy S7, Galaxy S7 Active, Galaxy S7 Edge, Galaxy S8, Galaxy S8+, Galaxy S8 Active, Galaxy S9, Galaxy S9+
- Sony:Xperia XZ2, Xperia XZ2 Compact, Xperia XZ3
- Xiaomi: Mi 9, Mi 9 Explorer, Mi Mix 2S, Mi Mix 3
- ZTE: Axon 10, Pro Axon 9 Pro
Package Content
Package Content
- 1 x RAM® Tough-Charge™ 15W Wireless Charging Suction Cup Mount (RAM-B-166-UN12W-1)
