RAM® Universal Marine Electronic Mount (RAM-D-115-C)

RAM® Universal Marine Electronic Mount (RAM-D-115-C)

RAM-D-115-C
$241.00 AUD
$241.00 AUD
Sale Sold out
Tax included.

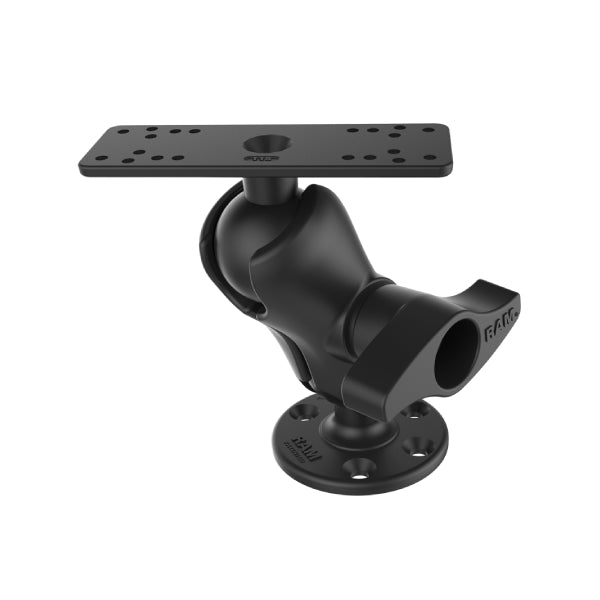

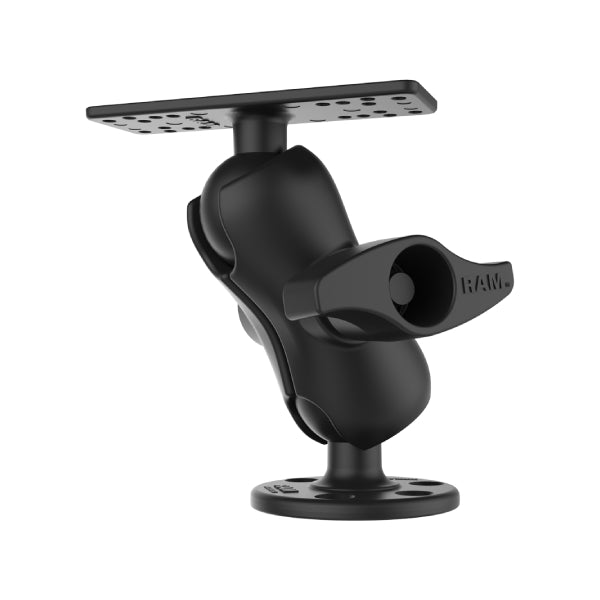

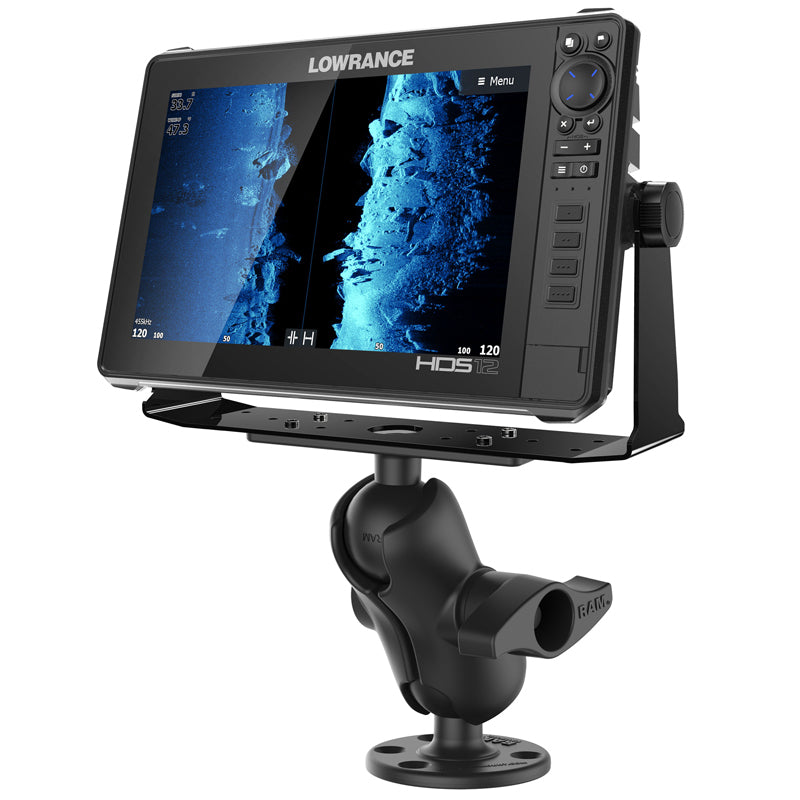

The RAM-D-115-C consists of a base with a 2.25” diameter D size ball a short arm and a 6.25” x 2” marine electronic plate with a D size ball for supporting larger devices. This marine electronic plate contains different combinations of pre-drilled holes and is a direct fit for 9”-12” fishfinder gimbal brackets. Supports devices such as the Lowrance HDS-9 Gen2 Touch Garmin GPSMAP 7407 and more.

Features

  • Overall Height: 7.325"
  • Socket-to-Socket Length: 3.6"
  • Top Plate: 6.25" x 2"
  • Bottom Plate: 3.68" Diameter
  • Ball Size: D Size (2.25")
  • Weight Capacity Standard Use: 6 lbs
  • Weight Capacity Heavy-Duty Use: 5 lbs
  • Material: Marine-grade aluminum
  • Weight: 3.2 lbs.
  • Additional Information: The 6.25" x 2" rectangle base is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device.
  • Compatible Devices: See all in Extra Info tab

Tech Specs

  • Complete flat surface, drill-down mounting solution with short length D size socket arm compatible with 9"-12" fishfinder gimbal brackets
  • RAM® Mounts ball and socket technology allows for near-infinite adjustability
  • Made of Powder-coated, marine-grade aluminum for durability and reliability in the most demanding marine environments
  • Backed by a lifetime warranty

Package Content

  • 1 x RAM® Universal Marine Electronic Mount (RAM-D-115-C)
