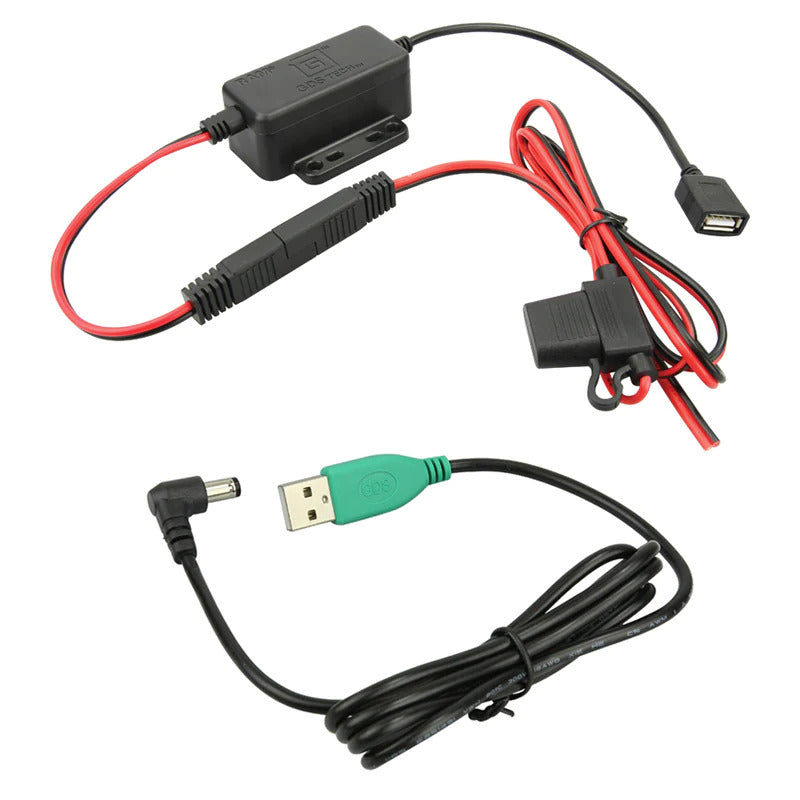

GDS Hardwire 30-64V Charger with 90-Degree DC Barrel Cable

GDS Hardwire 30-64V Charger with 90-Degree DC Barrel Cable

RAM-GDS-CHARGE-M55-V8BU
$65.00 AUD
$65.00 AUD
Sale Sold out
Tax included.

The GDS® Modular Hardwire Charger with a Female USB Type-A connector and a USB Type-A male connector is the ideal solution for providing power to any GDS® vehicle solution. With the quick disconnect feature, easily connect any USB Type-A charging cable. When it comes time to upgrade, avoid any rewiring by simply unplugging the power connector and attaching the new charger components. Compatible with any 5V device with a 30V-64V input range. Always Protected. Always Connected.®

Features

  • Hardwire charger includes USB Type-A female connector; 30V-64V input range, 5V output. In addition, it includes the USB Type-A male connection and a 5.5mm DC connector
  • When upgrading devices, avoid rewiring by unplugging the power connector and attaching new charger components
  • Part of the GDS® Ecosystem™ to keep devices protected, connected, and charged in nearly any application
  • Backed by a 3-year warranty

Tech Specs

  • Packaging Type: Poly Bag
  • Input Voltage: 30-64VDC
  • Output Voltage: 5-9VDC*
  • Output Current: 2.5A max
  • Input Connector: 90° DC Plug
  • Input Cable Length: 1.2 Meters (including 2 Pole Flat Marine Connector)
  • Output Cable Length: .2 Meters
  • Operating Temperature: -10°C to +70°C
  • Storage Temperature: -40°C to +70°C
  • Regulatory:
    • Over Voltage Protection
    • Short Circuit Protection
    • Reverse Polarity Protection
    • RoHS Compliance
    • WEEE Compliance
    • SAE J-1113-5 Load Dump (Transient Voltage)
    • Moisture Resistant
    • FCC, CE, UKCA, IC
  • Certifications:
    • E-Mark Certification
    • RCM Certification
    • IEC/UL 62368-1
  • Warranty: 3 year warranty
  • Weight: 0.42 lb
  • Additional Information:
    • *5V output is by way of USB 2.0 BC1.2 and DCP mode. 9V output is by way of AFC and QC 2.0.

Package Content

  • 1 x GDS® Modular 30-64V Hardwire Charger with 90-Degree DC Cable (RAM-GDS-CHARGE-M55-V8BU)
