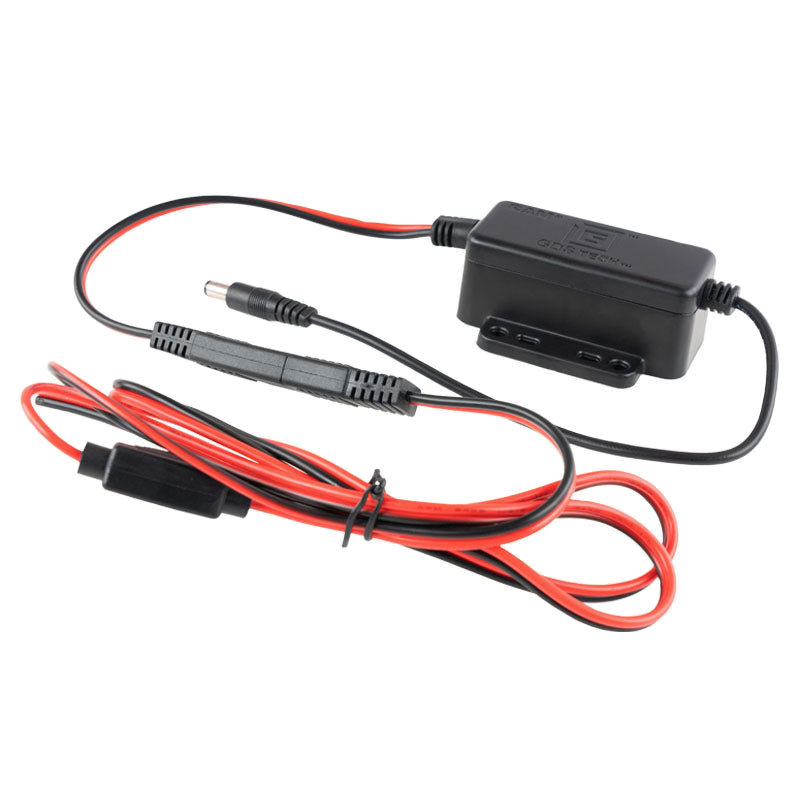

GDS® 20-60VDC Input (12VDC Output) Hardwire Charger with Male DC 5.5mm (RAM-GDS-CHARGE-V9U)

GDS® 20-60VDC Input (12VDC Output) Hardwire Charger with Male DC 5.5mm (RAM-GDS-CHARGE-V9U)

RAM-GDS-CHARGE-V9U
$59.00 AUD
$59.00 AUD
Sale Sold out
Tax included.

The GDS® Modular Hardwire Charger with 5.5mm Male DC cable is the ideal solution for providing power to any RAM® or GDS® DC powered docking station. When it comes time to upgrade, avoid any rewiring by simply unplugging the power connector and attaching the new charger components. This hardwire charger has an input of 20-60VDC input, making it ideal for forklift mounts and material handling applications. Always Protected. Always Connected.®

Features

  • Hardwire charger includes male 5.5mm barrel connector; 20-60VDC input range, 12VDC output
  • When upgrading devices, avoid rewiring by unplugging power connector and attaching new charger components
  • Part of the GDS® Ecosystem™ to keep devices protected, connected, and charged in nearly any application
  • Backed by a 3-year warranty

Tech Specs

  • Packaging Type: Poly Bag
  • Input Voltage: 20-60VDC
  • Output Voltage: 12VDC (+/-300mV)
  • Output Current: 3.5A max
  • Input Connector: Male 5.5mm OD x 2.5mm ID, Barrel Connector
  • Input Cable Length: 1.2 Meters including 2 Pole Flat Marine Connector
  • Output Cable Length: .2 Meters
  • Operating Temperature: -10 degree C to +70 degree C
  • Storage Temperature: -40 degree C to +70 degree C
  • Regulatory: Over Voltage Protection, Short Circuit Protection, Reverse Polarity Protection, RoHS Compliance, WEEE Compliance, SAE J-11 13-5 Load Dump (Transient Voltage), Moisture Resistant
  • Certifications: CE Certification, E-Mark Certification, RCM Certification
  • Warranty: 3 year warranty
  • Weight: 0.33 lb

Package Content

  • 1 x GDS® 20-60VDC Input (12VDC Output) Hardwire Charger with Male DC 5.5mm (RAM-GDS-CHARGE-V9U)
