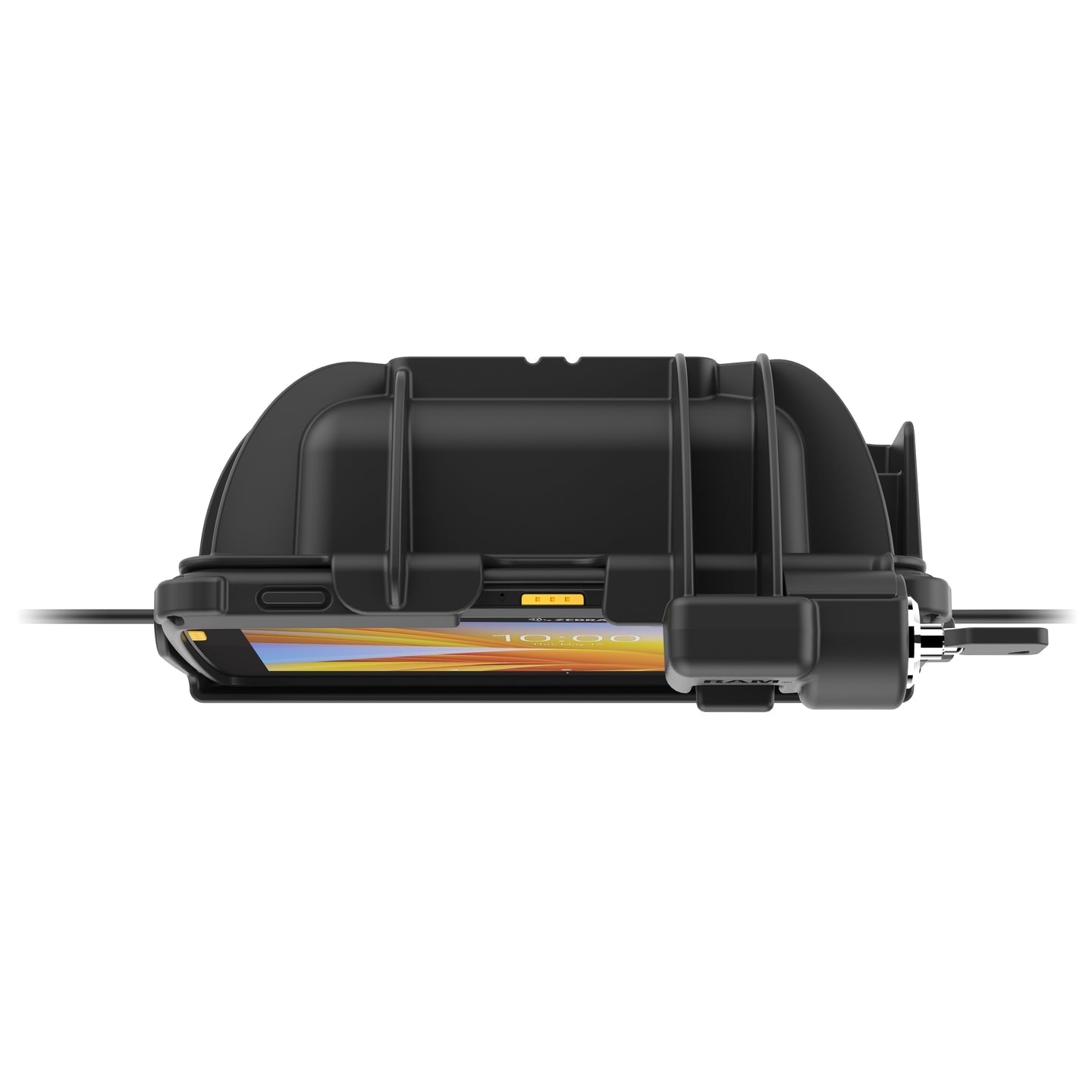

Locking GDS® Power + Data Dock for Zebra ET4x 8" with IntelliSkin® (RAM-GDS-DOCKL-ZE20PDU)

Locking GDS® Power + Data Dock for Zebra ET4x 8" with IntelliSkin® (RAM-GDS-DOCKL-ZE20PDU)

SKU:RAM-GDS-DOCKL-ZE20PDU

Regular price $448.00 AUD
Regular price Sale price $448.00 AUD
Sale Sold out
Tax included.

Featuring GDS® Technology™ for data and charging capabilities and a key lock for theft deterrence, the GDS® Vehicle Dock for Zebra ET40 & ET45 8" enterprise tablets with IntelliSkin® Next Generation protective sleeve allows you to connect a desired peripheral while keeping the device charged through the pogo pin contacts when the device is docked. Power is provided by connecting to the dock's USB Type-C connector, while peripheral support is provided by the built-in USB Type-A cable. The dock also allows the tablet's scanning function to work on the side, as well as tablet add-ons such as the Zebra Expansion Back and PowerPack Battery. This vehicle dock is compatible with C and D size RAM® 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm in order to complete your mounting solution. Take the solution a step further by taking advantage of the built-in 2-hole mounting plate compatible with RAM® 2-hole diamond base for additional device mounting such as a phone or other handheld device. Always Protected. Always Connected.®

Features

  • Locking powered dock featuring GDS® Technology™ with data and charging capabilities for the Zebra ET40 & ET45 8" enterprise tablets with IntelliSkin® Next Generation protective sleeve via USB Type-C for power and USB Type A connector for adding a peripheral; MIL-STD 810G Shock and Vibration tested
  • When connected to a power source, integrated pogo pins provide power to the device while docked; Dock accommodates tablet add-ons such as the Expansion Back and PowerPack Battery; tablet scanning works while tablet is docked
  • Compatible with C and D size RAM® 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability
  • Built-in 2-hole mounting plate for additional device mounting such as a phone; compatible with RAM® 2-hole diamond bases and accessory side bracket
  • Backed by a 3-year warranty

Tech Specs

  • Hole Pattern: 75 x 75mm VESA, 4-Hole AMPS: 1.181" x 1.496"
  • Material: High strength composite
  • Packaging Type: Poly Bag
  • Output Voltage: 5V - 20V @ 3A
  • Power Output: 60W
  • Input Connector: USB Type-C
  • Input Cable Length: 215mm
  • Output Connector: USB 2.0 Type-A
  • Output Cable Length: 215mm
  • Peripheral Output: 500mAh
  • Transfer Speed: 12Mbps
  • Certifications: RoHS, WEEE, CE, UKCA
  • Warranty: 3 year warranty
  • Weight: 1.6 lb
Additional Information: IntelliSkin® is required for this dock. See RAM-GDS-SKIN-ZE20C-NG for compatible IntelliSkin®.

Compatibility

  • Zebra: ET40 8" Tablet with IntelliSkin Next Gen, ET45 8" Tablet with IntelliSkin Next Gen
Additional Information: IntelliSkin® is required for this dock. See RAM-GDS-SKIN-ZE20C-NG for compatible IntelliSkin®.

Package Content

  • 1 x Locking GDS® Power + Data Dock for Zebra ET4x 8" with IntelliSkin® (RAM-GDS-DOCKL-ZE20PDU)
