RAM® Power + Data Dock for Panasonic FZ-S1 & FZ-L1 (RAM-HOL-PAN15PDU)

RAM® Power + Data Dock for Panasonic FZ-S1 & FZ-L1 (RAM-HOL-PAN15PDU)

SKU:RAM-HOL-PAN15PDU

Regular price $285.00 AUD
Regular price Sale price $285.00 AUD
Sale Sold out
Tax included.

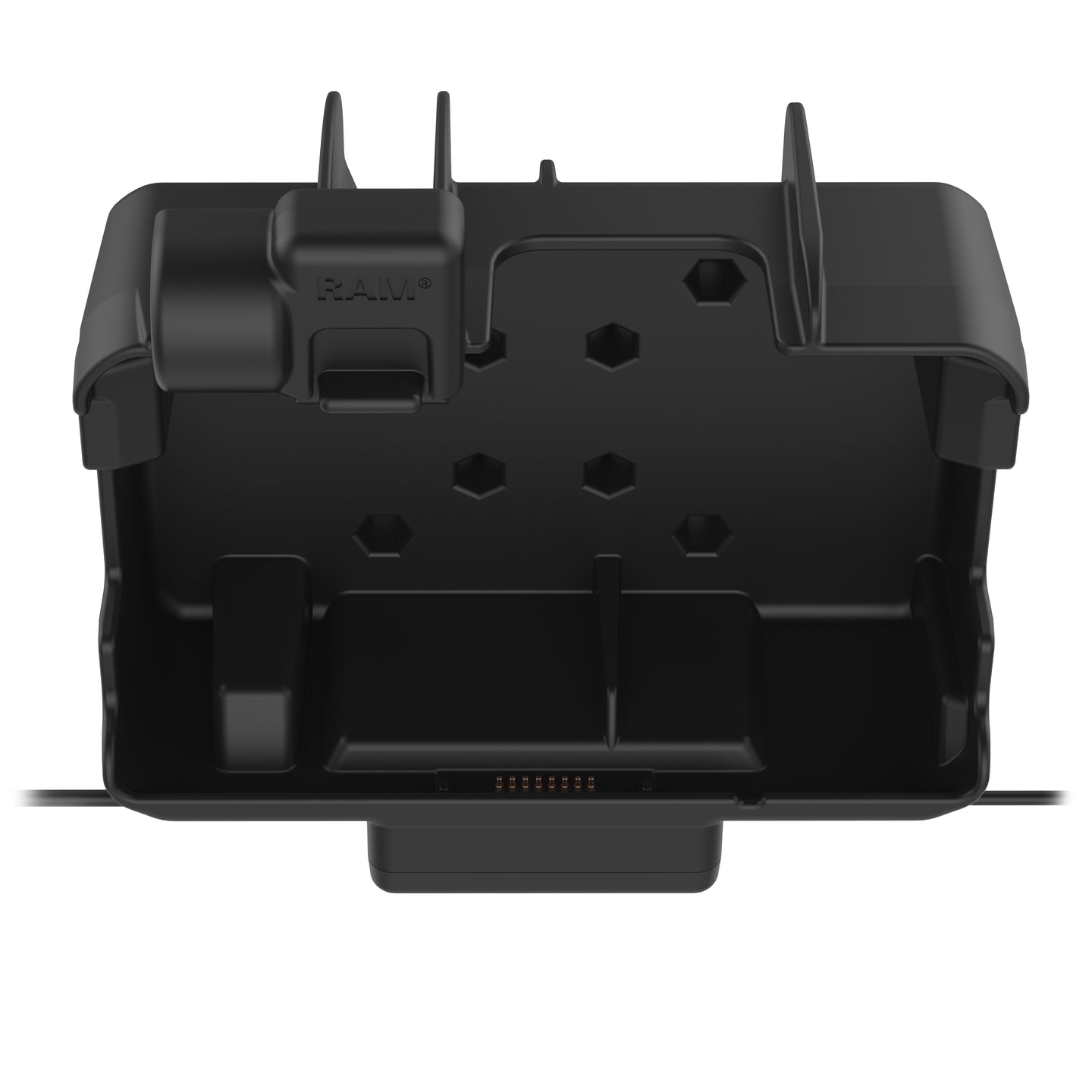

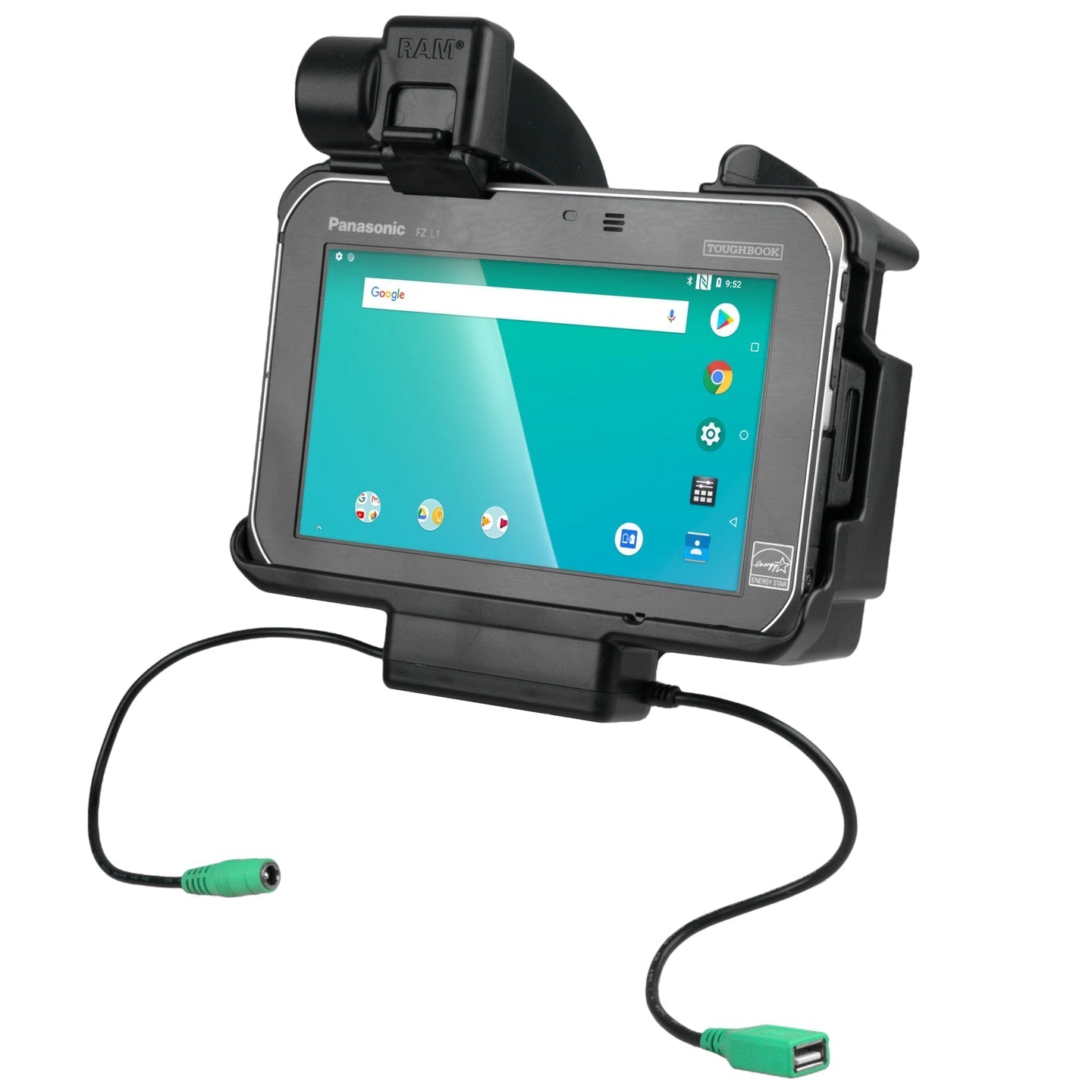

Featuring data and charging capabilities, the RAM® Vehicle Dock for Panasonic FZ-S1 & FZ-L1 allows you to connect a desired peripheral while keeping the device charged through the pogo pin contacts when the device is docked. Power is provided by connecting to the dock's 5.5mm DC power jack, while peripheral support is provided by the built-in USB Type-A cable. This dock features cutouts that leave all buttons and ports exposed and easily accessible, while also enabling the tablet's scanning function to work through the cutout on the back which also accommodates tablet add-ons such as a scanner, hand strap, and extended battery. This vehicle dock is compatible with C and D size RAM® 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm in order to complete your mounting solution.

Features

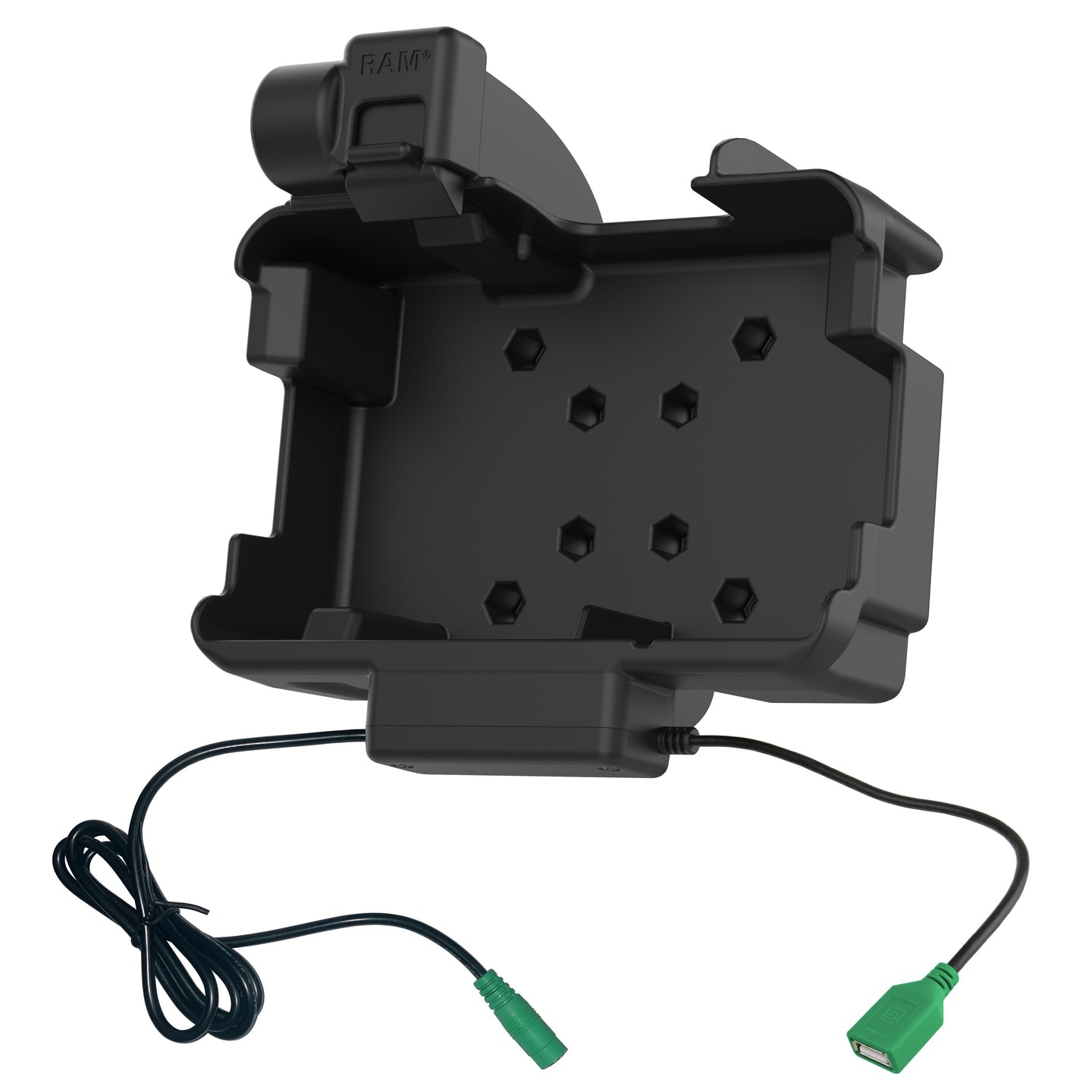

  • Spring-loaded powered dock for Panasonic FZ-S1 & FZ-L1 tablet via DC 5.5mm power jack and USB Type A connector for adding a peripheral
  • When connected to a power source, integrated pogo pins provide power to the device while docked; Dock accommodates tablet add-ons such as scanner, hand strap, and extended battery; tablet scanning works while tablet is docked

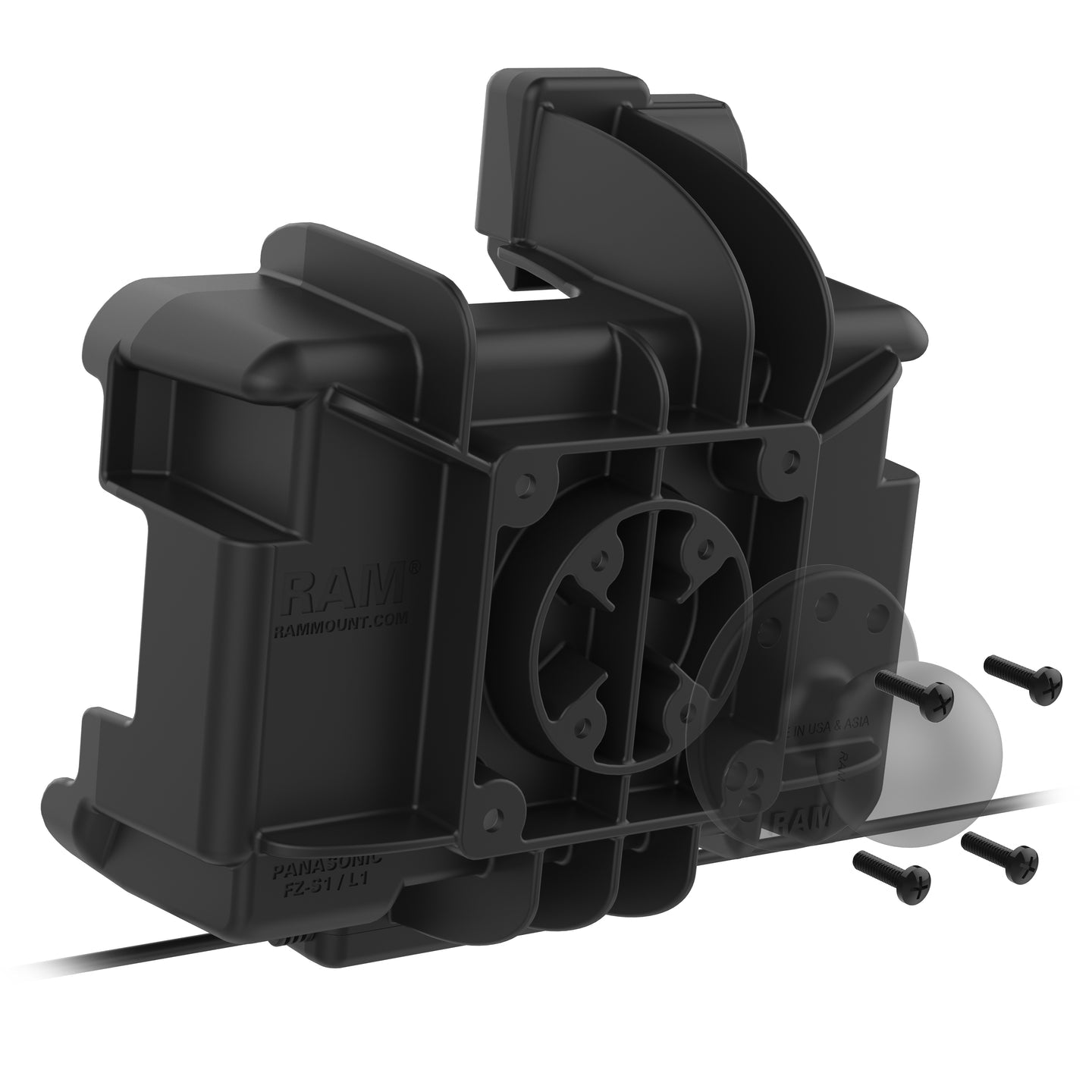

  • Compatible with RAM® 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability
  • Backed by a 3-year warranty

Tech Specs

  • Hole Pattern: 75 x 75mm VESA, 4-Hole AMPS: 1.181" x 1.496"
  • Materials: High strength composite
  • Packaging Type: Poly Bag
  • Input Voltage: 4.4-5.4VDC
  • Output Voltage: 4.5 - 5.4 VDC
  • Output Current: 900mA
  • Input Connector: USB Type A
  • Input Cable Length: 8.4"
  • Output Connector: USB 1.1 Type A
  • Output Cable Length: 8.4"
  • Peripheral: 500mAh
  • Transfer Speed: 12Mbps
  • Regulatory: FCC, IC, E-Mark
  • Certifications: CE, RoHSk
  • Weight: 1.27 lb

Compatibility

  • Panasonic: Toughbook FZ-L1. Toughbook FZ-S1

Package Content

  • 1 x RAM® Power + Data Dock for Panasonic FZ-S1 & FZ-L1 (RAM-HOL-PAN15PDU)
