RAM® Powered Dock & Dashboard Mount for Samsung Tab Active4 Pro (RAM-101-225B2-SAM52CP-V7CU)
RAM® Powered Dock & Dashboard Mount for Samsung Tab Active4 Pro (RAM-101-225B2-SAM52CP-V7CU)
SKU:RAM-101-225B2-SAM52CP-V7CU
Couldn't load pickup availability

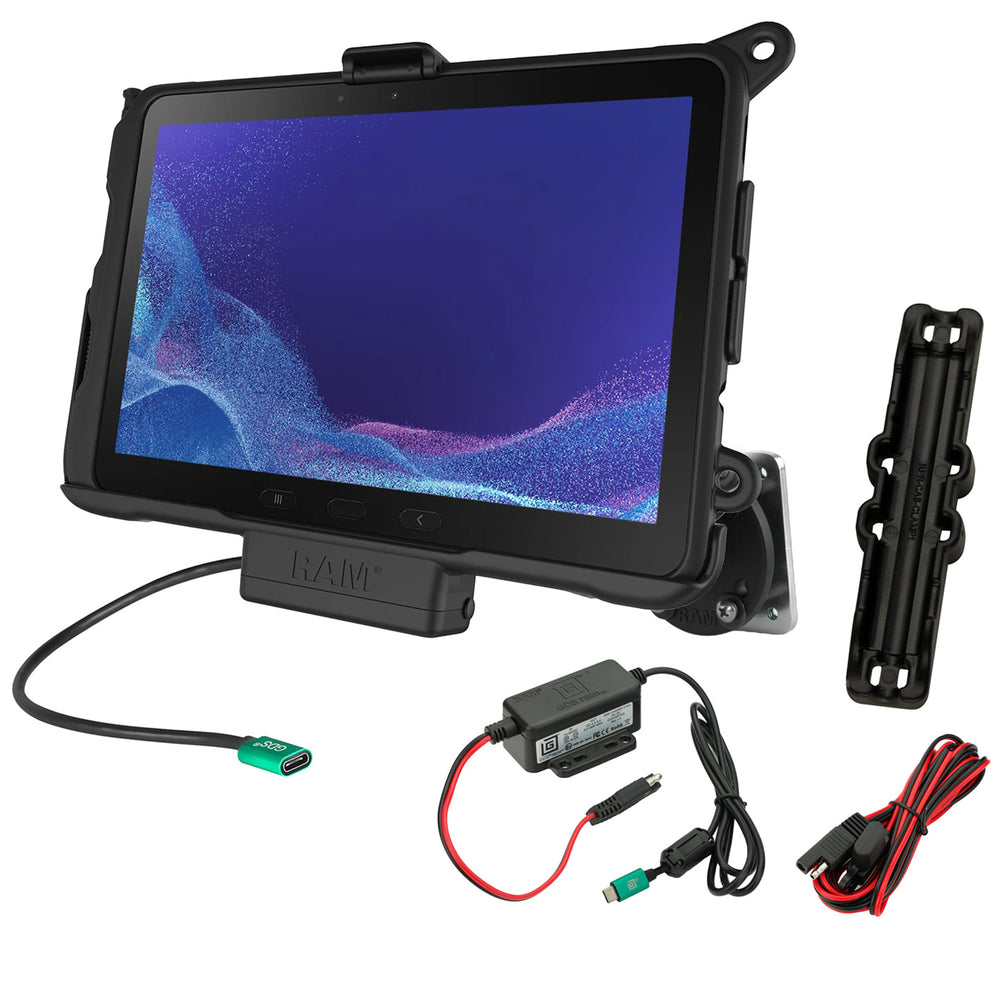

The RAM® Powered Dock & Dashboard Mount for Samsung Tab Active4 Pro (RAM-101-225B2-SAM52CP-V7CU) is a comprehensive kit of everything needed to deploy the Samsung Tab Active4 Pro in your fleet. It contains one RAM® USB-C Powered Dock, RAM® Skin for the Tab Active4 Pro, and double ball mount with backing plate. The dock uses a USB Type-C female power connector and integrated pogo pins to provide power to the device while docked. It also features an easy docking and undocking process, simply place the device into the base of the dock and push it to snap into place. When undocking, a simple push the lever upwards to release the device. The RAM® Powered Dock is backed by a 3-year warranty.
Features
Features

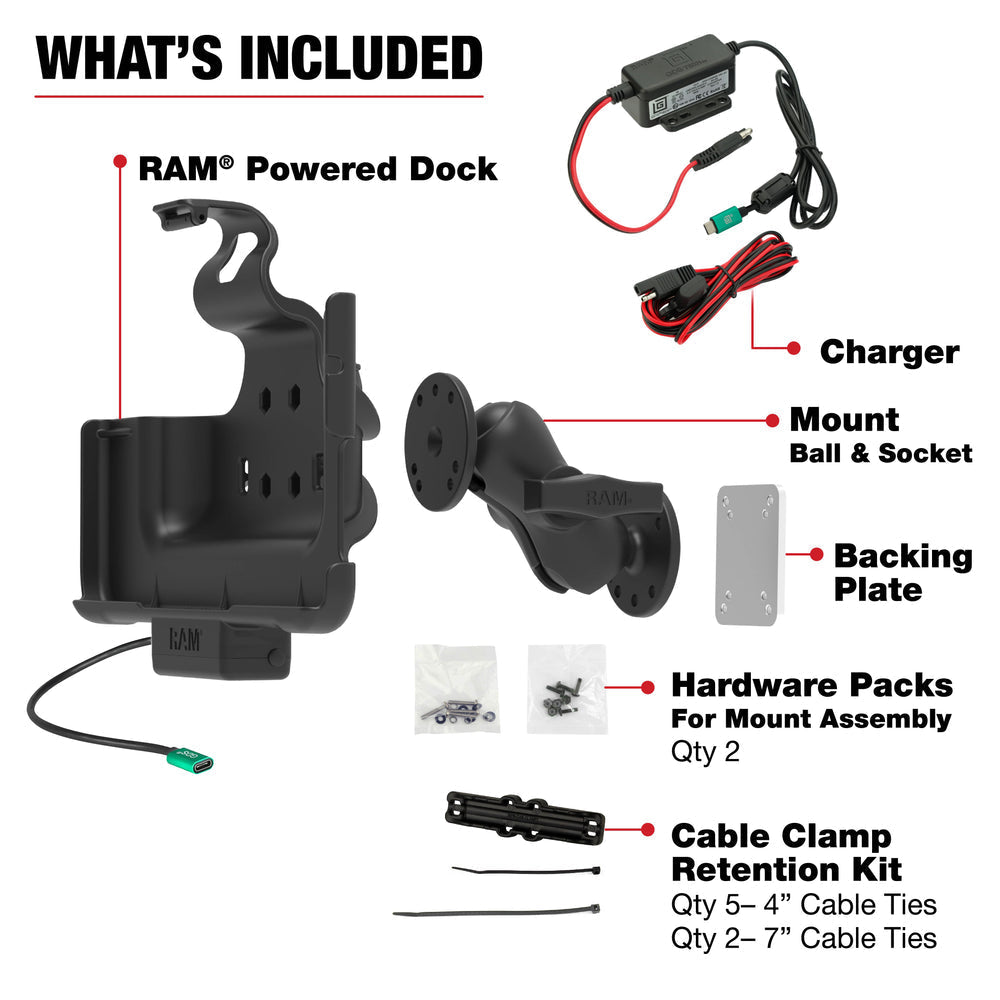

- Bundle includes the RAM® USB-C Powered Dock, RAM® Skin for the Tab Active4 Pro, and C size double ball mount with medium arm, backing plate adapter, and cable clamp
- Powered dock designed specifically for the Samsung Galaxy Tab Active4 Pro wrapped in the RAM® Skin™ or Samsung OEM case
- Next-gen charging with integrated pogo pin docking contacts that match the Tab Active4 Pro's pogo pads for a fumble-free charging experience and port protection
- Backed by a 3-year warranty
Tech Specs
Tech Specs
- Hardware Included:
- Assembly Hardware
- (1) 2.10" x 2.60" Steel Backing Plate
- (4) #8-32 x 1" Screws
- (4) #8 Split Lock Washers
- (4) #8 Flat Washers
- (1) Cable Clamp
- (1) Hardwire Charger
- Socket to Socket Length: 3"
- Ball Size: C Size (1.5")
- Weight Capacity:
- Standard Use: 4 lbs
- Heavy-Duty Use: 3 lbs
- Materials:
- Steel
- Marine-grade aluminum
- High strength composite
- Packaging Type: Poly Bag
- Input Voltage: 5.3-5.4VDC
- Output Voltage: 5VDC
- Power Output: 500mA
- Input Connector: USB Type-C Female
- Input Cable Length: 215mm
- Operating Temperature: -10°C to +70°C
- Storage Temperature: -40°C to +70°C
- Regulatory:
- Overvoltage/Load Dump Compliance: Meets SAE J-1113
- FCC, CE, UKCA, IC
- Certifications:
- E-Mark Certification
- Integrated Short Circuit Protection
- WEEE and RoHS Compliant
- USB 2.0 BC 1.2 DCP Support
- IEC/UL 62368-1
- Weight: 2.55 lb
Compatibility
Compatibility
- Samsung: Galaxy Tab Active Pro, Galaxy Tab Active4 Pro
Product Guides
Product Guides
Package Content
Package Content
- 1 x RAM® USB-C Powered Dock for Samsung Tab Active4 Pro & Tab Active Pro (RAM-HOL-SAM52CPU)
