RAM® Handlebar U-Bolt Double Ball Mount with Round Plate - C Size Short (RAM-149Z-B-202U)

RAM® Handlebar U-Bolt Double Ball Mount with Round Plate - C Size Short (RAM-149Z-B-202U)

SKU:RAM-149Z-B-202U

Regular price $108.95 AUD
Regular price Sale price $108.95 AUD
Sale Sold out
Tax included.

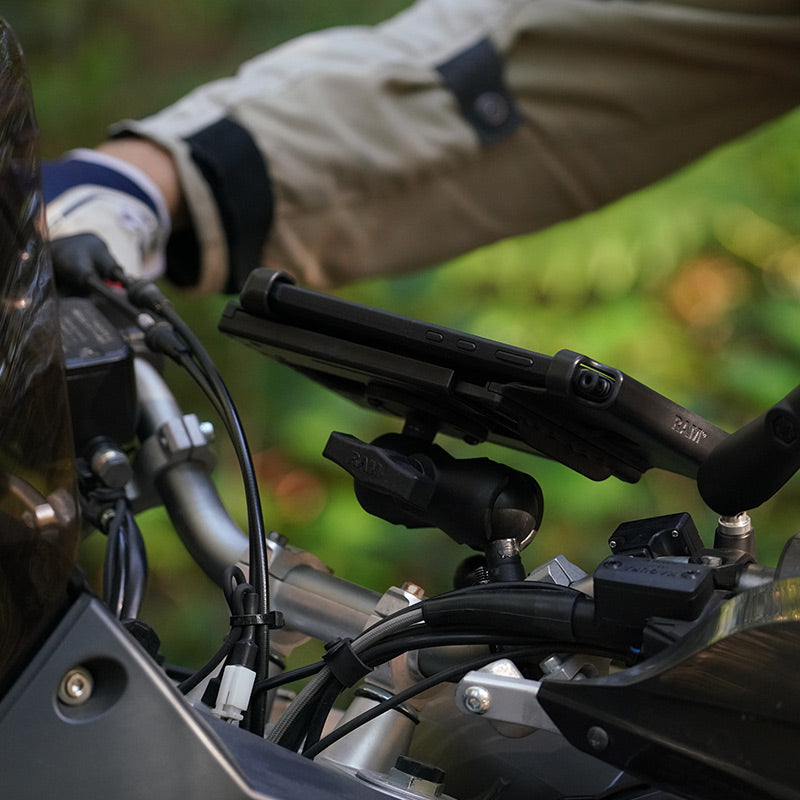

The RAM® Handlebar U-Bolt Double Ball Mount with Round Plate consists of a C size (1.5") zinc-coated U-bolt base, a short C size double socket arm and a C size RAM® round base adapter for attaching a tablet holder. The round base adapter has a hole pattern that matches the industry standard AMPS hole pattern and will connect to a large variety of RAM® Mount and/or third-party tablet holders. Included in this package is hardware that will accommodate handlebars and rails from 0.50" to 1.25" in diameter. A composite rail adapter can narrow the rail to a minimum width of 0.5”. The mount is designed with a RAM® C size 1.5" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allows for almost infinite adjustment and perfect viewing angles. This mount is ideal for securely mounting a tablet to a motorcycle or ATV/UTV vehicle.

Features

  • Motorcycle or ATV/UTV handlebar/rail mount ideal for attaching a tablet holder; connects to RAM® device holders containing the universal AMPS hole pattern
  • Includes, C size (1.5") 4-hole round RAM® ball adapter, U-bolt base that accommodates rails from .5" to 1.25" in diameter and a short length double socket arm; ball and socket technology allows for near-infinite adjustability
  • Made of powder-coated, marine-grade aluminium components for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty

Tech Specs

  • Clamp Range: .5" - 1.25" diameter
  • Socket to Socket Length: 2.5"
  • Hole Pattern: 4-Hole AMPS: 1.181" x 1.496"
  • 3-Hole 120-Degree: 1.812" Diameter
  • Ball Size: C Size (1.5")
  • Weight Capacity: Standard Use: 4 lbs
  • Heavy-Duty Use: 3 lbs
  • Materials: Marine-grade aluminum
  • Packaging Type: Poly Bag
  • Weight: 1.02 lb

Package Content

  • 1 x RAM® Handlebar U-Bolt Base for Rails 0.5" to 1.25" in Diameter - C Size (RAM-231ZU)
  • 1 x RAM® Double Socket Arm - C Size Short (RAM-201U-B)
  • 1 x RAM® Round Plate with Ball - C Size (RAM-202U)
