RAM® Double Ball Yoke Clamp Mount with Diamond Plate - Medium (RAM-B-121-238U)

RAM® Double Ball Yoke Clamp Mount with Diamond Plate - Medium (RAM-B-121-238U)

RAM-B-121-238U
$129.00 AUD
$129.00 AUD
Sale Sold out
Tax included.

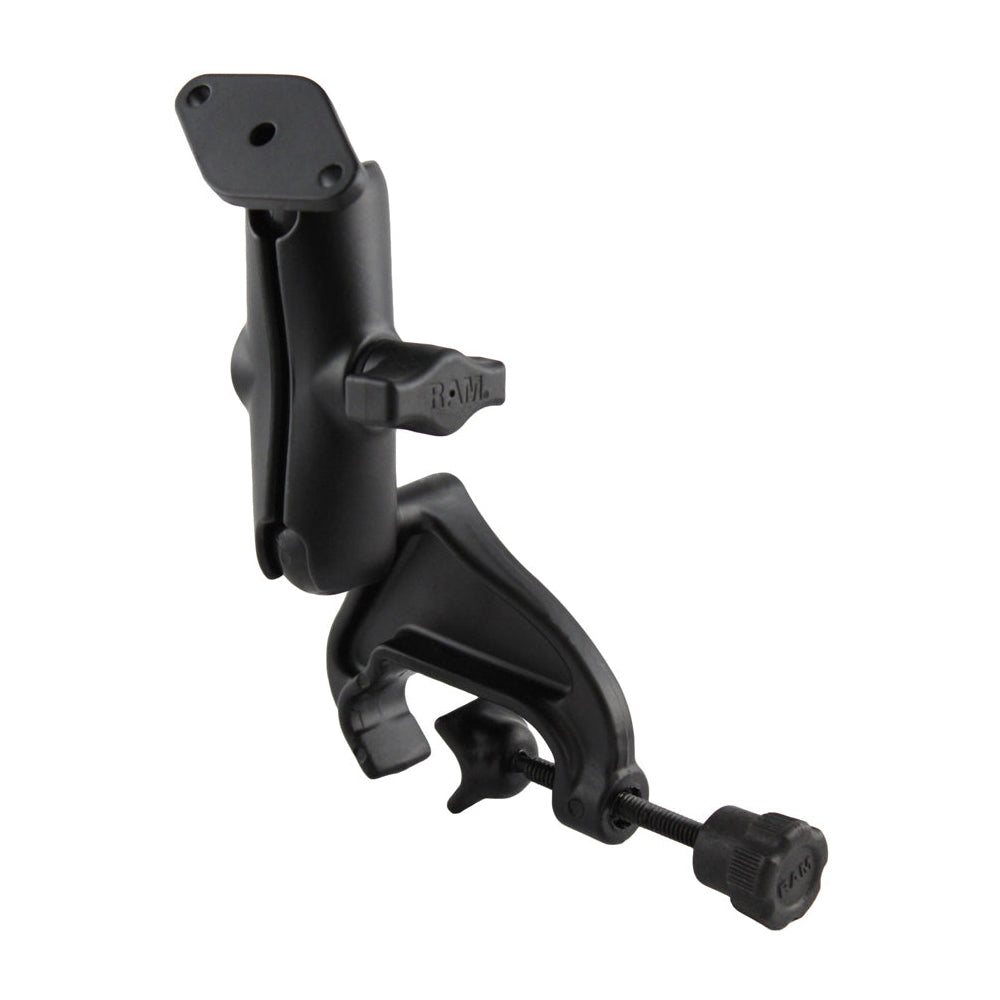

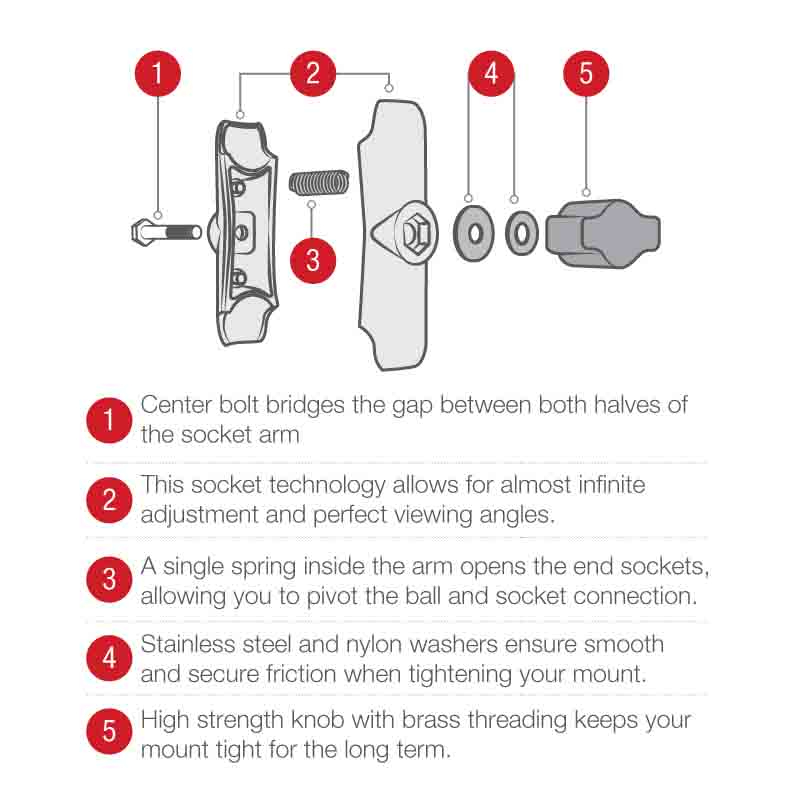

The RAM-B-121-238U consists of a yoke clamp base, standard length double socket arm and 2.43" x 1.31" diamond base. The yoke clamp base will fit rails in diameter from 0.625" to a maximum of 1.25". The 1" rubber ball is at a right angle to the plane of the mount; when connected to a rail, the ball sits parallel to the rail. The diamond base has two holes 1.912" from centre to centre, matches the industry standard AMPS hole pattern and will connect to a large variety of RAM Mount and third party cradles. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm, allowing for almost infinite adjustment and perfect viewing angles.

Features

  • Yoke clamp base fits rails from .625" to 1.25" in diameter
  • Round plate features industry-standard AMPS hole pattern; connects to a variety of RAM® device holders
  • Made of powder-coated, marine-grade aluminium for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty

Tech Specs

  • Clamp Range: 0.625" - 1.25"
  • Socket to Socket Length: 3"
  • Hole Pattern: 2-Hole AMPS: 1.912"
  • Plate Size: 2.43" x 1.31"
  • Ball Size: B Size (1")
  • Weight Capacity:
    • Standard Use: 2 lbs
    • Heavy-Duty Use: 1 lb
  • Materials: Marine-grade aluminum
  • Packaging Type: Poly Bag
  • Weight: 0.71 lb

Product Guides

Package Content

  • 1 x RAM® Yoke Clamp Base with Ball (RAM-B-121BU)
  • 1 x RAM® Double Socket Arm - B Size Medium (RAM-B-201U)
  • 1 x RAM® Diamond Ball Base - B Size (RAM-B-238U)
