• GDS® Modular 30-64V Hardwire Charger with Type-C Cable (RAM-GDS-CHARGE-USBC-V8BU)
1 1

GDS® Modular 30-64V Hardwire Charger with Type-C Cable (RAM-GDS-CHARGE-USBC-V8BU)

GDS® Modular 30-64V Hardwire Charger with Type-C Cable (RAM-GDS-CHARGE-USBC-V8BU)

RAM-GDS-CHARGE-USBC-V8BU
$114.00 AUD
$114.00 AUD
Sale Sold out
Tax included.

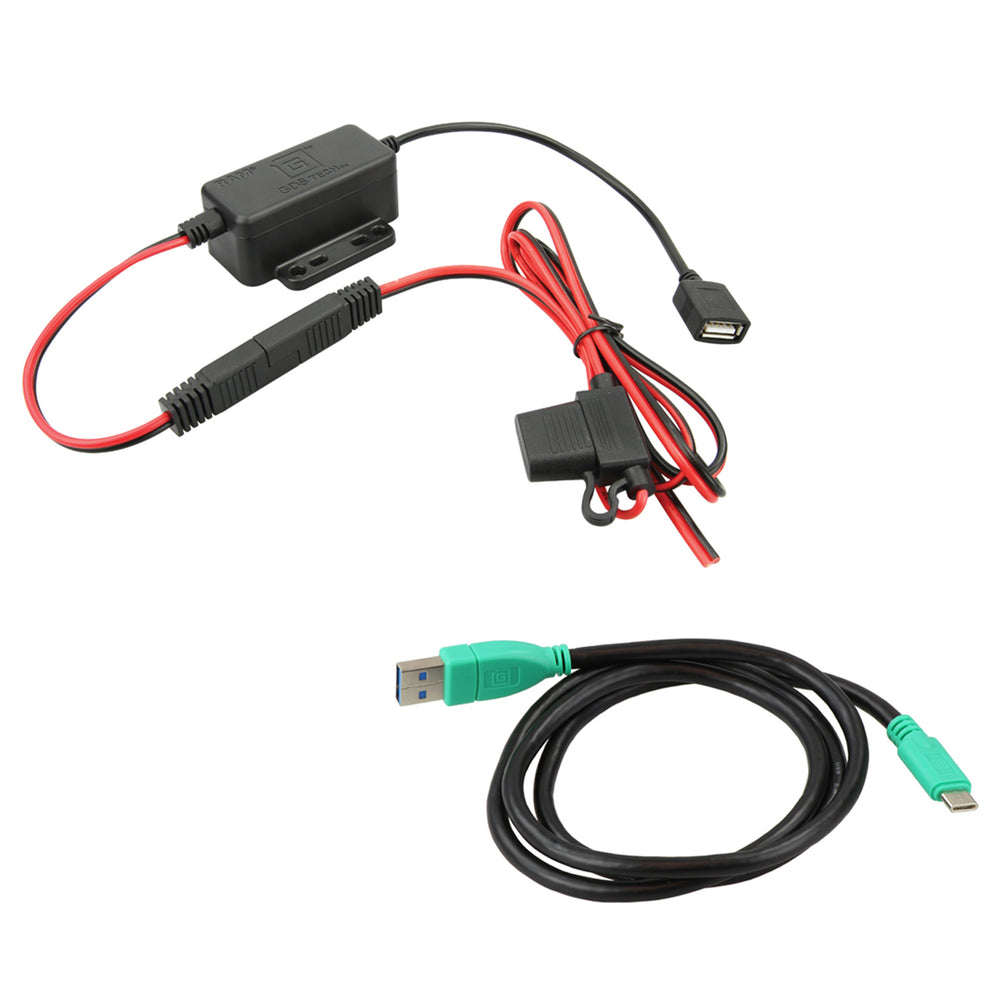

The GDS® Modular Hardwire Charger with Female USB Type-A Connector is the ideal solution for providing power to any GDS® vehicle solution. With the quick disconnect feature you can avoid rewiring with it comes to to upgrade by simply unplugging the SAE connector and attaching the new charger components. Compatible with any 5V device with a 30V-64V input range. Includes 1 meter long USB Type-C extension cord. Always Protected. Always Connected.®

Features

  • Hardwire charger includes USB Type-A female connector and 1m long USB Type C extension cord; 30V-64V input range, 5V output
  • When upgrading devices, avoid rewiring by unplugging the power connector and attaching new charger components
  • Part of the GDS® Ecosystem™ to keep devices protected, connected,
    • and charged in nearly any application
  • Backed by a 3-year warranty

Tech Specs

  • Hardware Included:
    • (1) USB Type-C to Type-A Cable
  • Packaging Type: Poly Bag
  • Input Voltage: 30-64VDC
  • Output Voltage: 5-9VDC*
  • Output Current: 2.5A max
  • Input Connector: USB Type-C
  • Input Cable Length: 1.2 Meters (Including 2 Pole Flat Marine Connector)
  • Output Cable Length: .2 Meters
  • Operating Temperature: -10°C to +70°C
  • Storage Temperature: -40°C to +70°C
  • Regulatory:
    • Over Voltage Protection
    • Short Circuit Protection
    • Reverse Polarity Protection
    • RoHS Compliance
    • WEEE Compliance
    • SAE J-1113-5 Load Dump (Transient Voltage)
    • Moisture Resistant
    • FCC, CE, UKCA, IC
  • Certifications:
    • E-Mark Certification
    • RCM Certification
    • IEC/UL 62368-1
  • Warranty: 3 Year Warranty
  • Weight: 0.46 lb
  • Additional Information:
    • *5V output is by way of USB 2.0 BC1.2 and DCP mode. 9V output is by way of AFC and QC 2.0.

Product Guides

Package Content

  • 1 x GDS® Modular 30-64V Hardwire Charger with Type-C Cable (RAM-GDS-CHARGE-USBC-V8BU)
