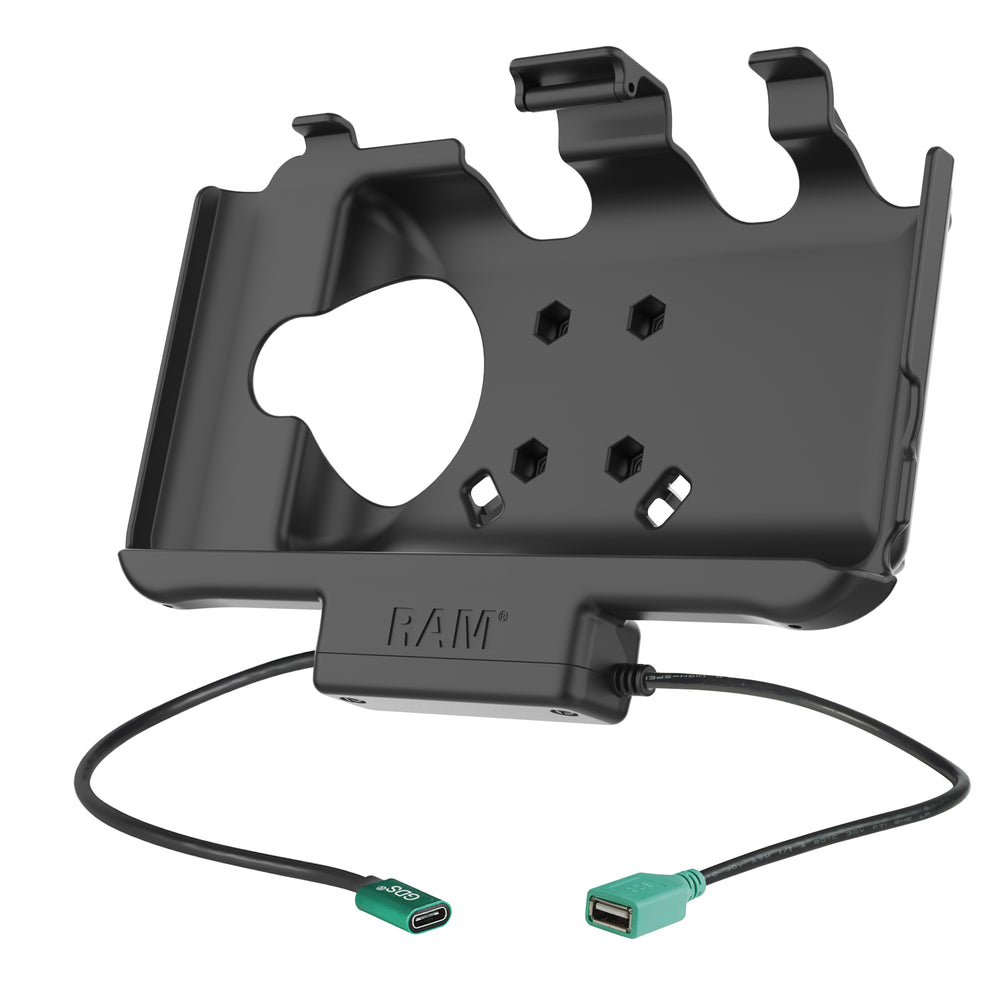

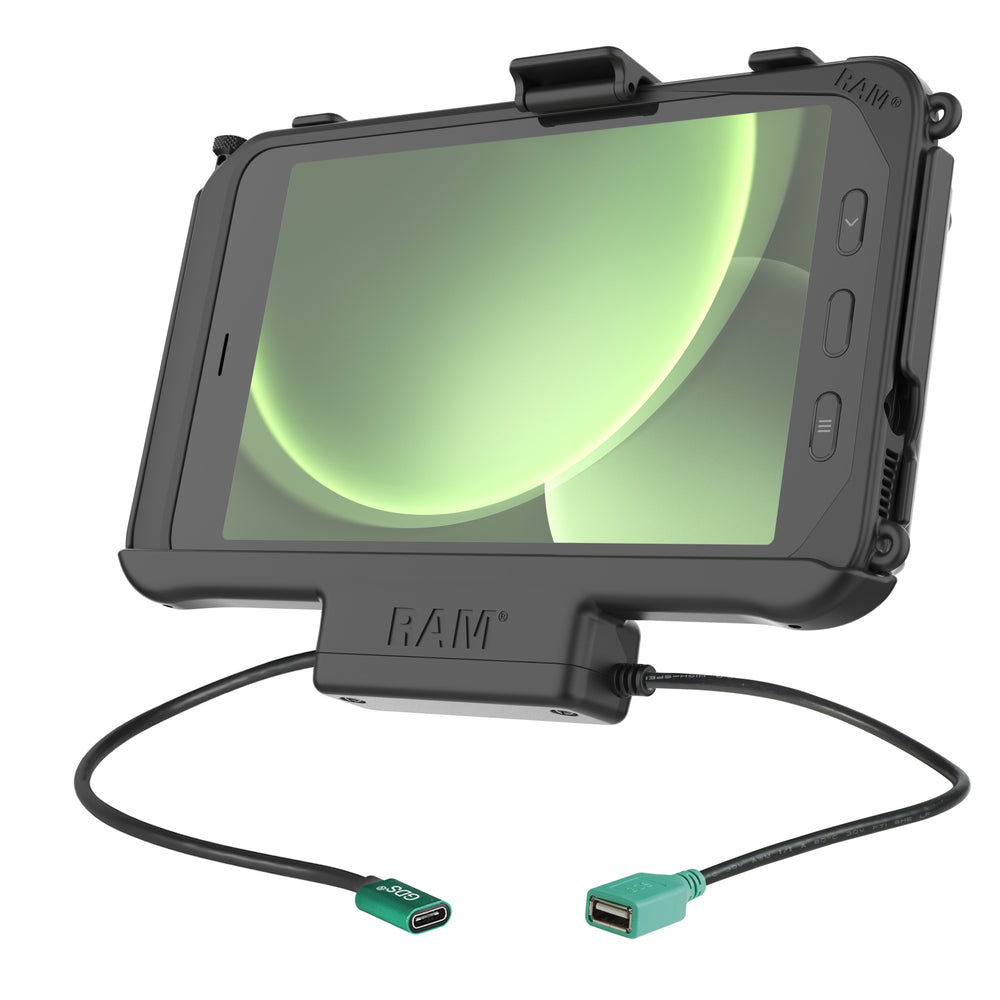

RAM® EZ-Roll'r™ Power + Data Dock Samsung Tab Active5 & 3 (RAM-HOL-SAM60CP-1AU)

RAM® EZ-Roll'r™ Power + Data Dock Samsung Tab Active5 & 3 (RAM-HOL-SAM60CP-1AU)

SKU:RAM-HOL-SAM60CP-1AU

Regular price $154.00 AUD
Regular price Sale price $154.00 AUD
Sale Sold out
Tax included.
This RAM® EZ-Roll€™r™ power cradle for the Samsung Tab Active5, Tab Active3 and 2 has been designed to meet the demands of field workers in a variety of applications including transportation, field sales, logistics, manufacturing, and much more. Power and data sync capabilities are provided to the device through GDS® pogo pins while taking advantage of this cradle's USB-A port to support an additional peripheral making this the ideal, compact mounting solution for your mobile workstation. Access to the stylus remains while the device is docked. Included is a set of four nuts and bolts to connect the cradle to any RAM® components containing the universal 4-hole AMPS pattern. This cradle also contains space in the back allowing for a GDS® Hand-Stand™ attachment so you can easily take your Tab Active5, 3 & 2 from your vehicle, to your person, to your desk with zero hassle.

Features

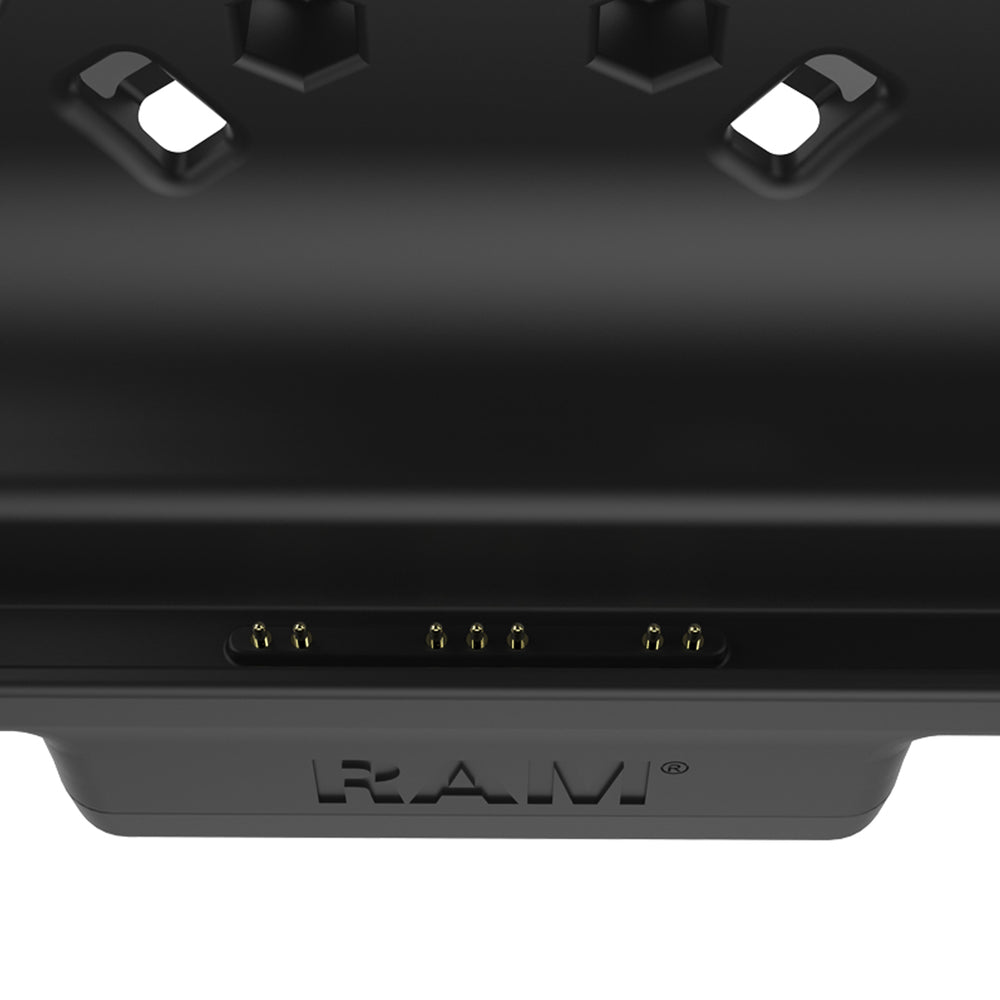

  • RAM® EZ-Roll'r™ form-fit powered dock for the Samsung Galaxy Tab Active5, Tab Active3 and 2 provides charging and connects one additional USB peripheral through an integrated pogo pin connector

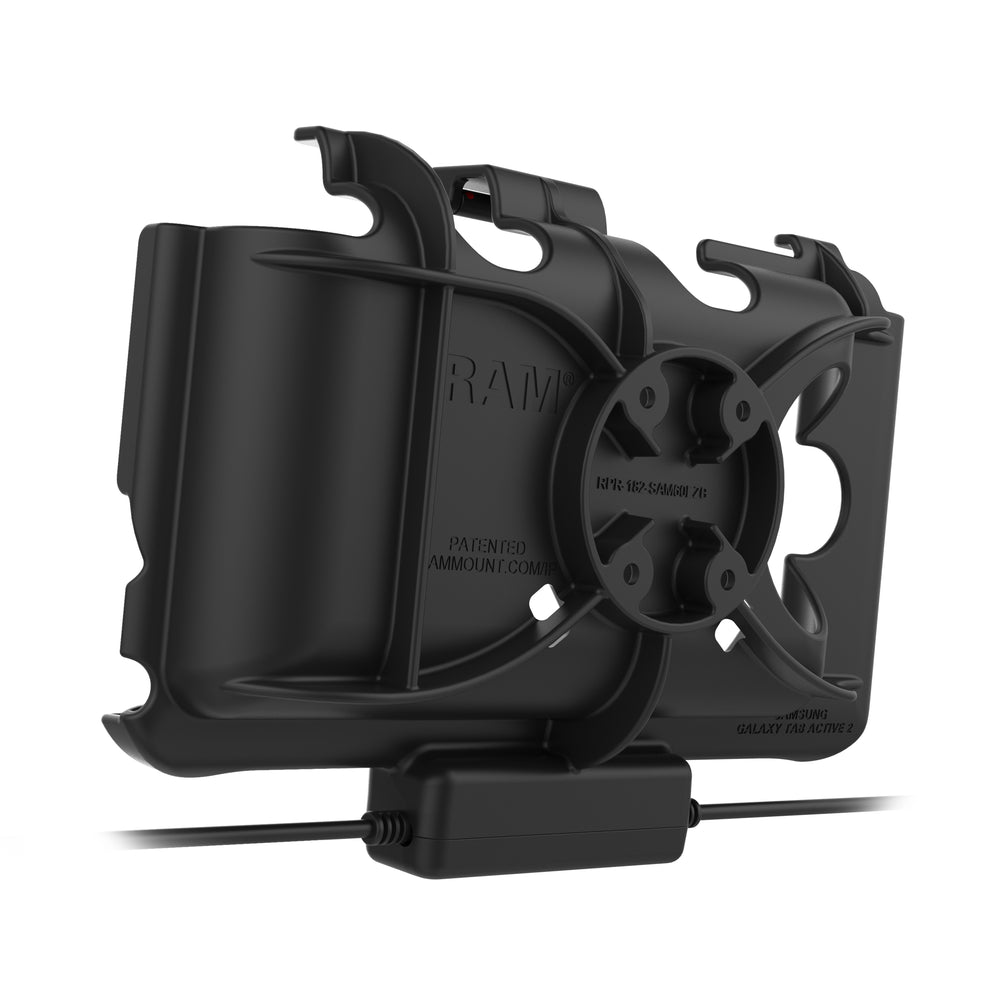

  • Compatible with the Samsung OEM skin as well as the RAM® Skin™; the built-in cavity in the back allows for GDS® Hand-Stand™ compatibility
  • Power delivered via a USB-C connector; connect a single input device via a USB-A connector
  • Access to speakers, mics, and headphone jack remains while device is docked; allows access to the GDS® shoulder strap loops on RAM® Skin™
  • Backed by a 3-year warranty

Tech Specs

  • Dimensions: Width: 9.24", Height: 6.34", Depth: 2.57"
  • Hole Pattern: 4-Hole AMPS: 1.181" x 1.496"
  • Materials: High strength composite
  • Packaging Type: Poly Bag
  • Input Voltage: 5.3-5.4VDC
  • Output Voltage: 5VDC
  • Power Output: 500mA
  • Input Connector: USB Type-C Female
  • Input Cable Length: 250mm
  • Output Connector: USB 1.1 Type A
  • Output Cable Length: 250mm
  • Peripheral Output: 500mAh
  • Transfer Speed: 12Mbps
  • Warranty: 3 year warranty
  • Weight: 0.71 lb
  • Additional Information: This product will not support the "No Battery Mode" function of the Tab Active3. To support "No Battery Mode", see RAM® Tough-Case™ options.

Compatibility

  • Samsung: Tab Active5, Tab Active3, Tab Active2

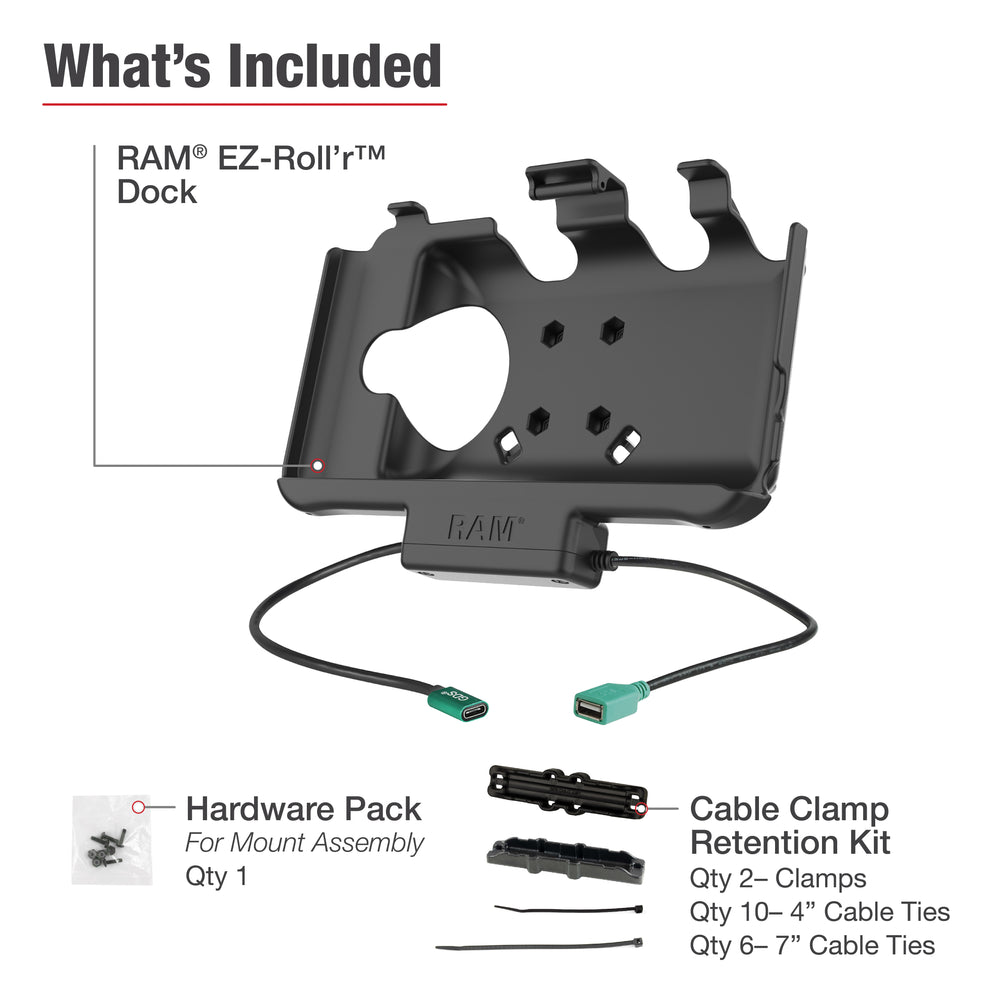

Package Content

  • 1 x RAM® EZ-Roll'r™ Power + Data Dock Samsung Tab Active5 & 3 (RAM-HOL-SAM60CP-1AU)
