RAM USB-C Powered Dock + USB-A & RJ45 Data for Samsung Tab Active5 & 3 (RAM-HOL-SAM60CP-RJ45AU)

RAM USB-C Powered Dock + USB-A & RJ45 Data for Samsung Tab Active5 & 3 (RAM-HOL-SAM60CP-RJ45AU)

SKU:RAM-HOL-SAM60CP-RJ45AU

Regular price $365.00 AUD
Regular price Sale price $365.00 AUD
Sale Sold out
Tax included.

The RAM® USB-C Powered Dock + USB-C & RJ45 Data for Samsung Tab Active5 & Tab Active3 (RAM-HOL-SAM60CP-RJ45AU) was thoughtfully designed to meet the demands of commercial truck drivers, field service technicians, pupil transporters, logistics managers, forklift operators, and more. Power and data sync capabilities are provided to the device through GDS® pogo pins while taking advantage of this dock's dual USB Type-A and RJ45 (ethernet) pigtail to support up to two additional peripheral devices, making this the ideal, compact mounting solution for your mobile workstation. This modular dock is compatible with the RAM® Skin, factory device skin, and GDS® Hand-Stand. Access to the stylus remains while the device is docked. Included is a set of four nuts and bolts to connect the dock to any RAM® components containing the universal AMPS hole pattern along with cable clamps and zip ties for cable retention.

Features

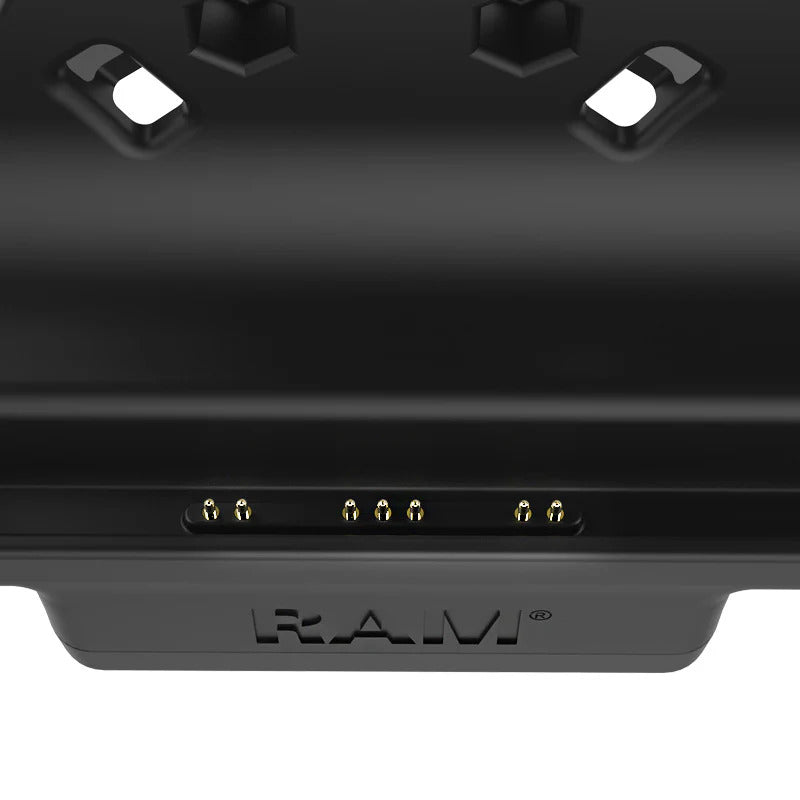

  • RAM® EZ-Roll'r™ form-fit powered dock designed specifically for the Samsung Galaxy Tab Active5 & Tab Active3; provides charging through an integrated pogo pin connection and USB-C cable
  • Compatible with the Samsung OEM skin as well as the RAM® Skin™; built-in cavity in the back allows for GDS® Hand-Stand™ compatibility
  • Power delivered via USB-C connector; data and ethernet connects to dual USB-A and RJ45 connector
  • Access to speakers, mics, and headphone jack remain while device is docked; allows access to the GDS® shoulder strap loops on RAM® Skin™
  • Backed by a 3-year warranty

Tech Specs

  • Width: 9.24"
  • Height: 6.34"
  • Depth: 2.57"
  • Hole Pattern: 4-Hole AMPS: 1.181" x 1.496"
  • Materials: High strength composite
  • Packaging Type: Poly Bag
  • Input Voltage: 5.3-5.4VDC
  • Output Voltage: 5VDC
  • Power Output: 500mA
  • Input Connector: USB Type-C Female
  • Input Cable Length: 215mm
  • Output Connector: (1) USB-A Female | (1) RJ45
  • Output Cable Length: 215mm
  • Peripheral Output: 900mAh
  • Transfer Speed: 480Mbps
  • Warranty: 3 year warranty
  • Weight: 0.8 lb

Compatibility

Galaxy Tab Active3
Galaxy Tab Active5

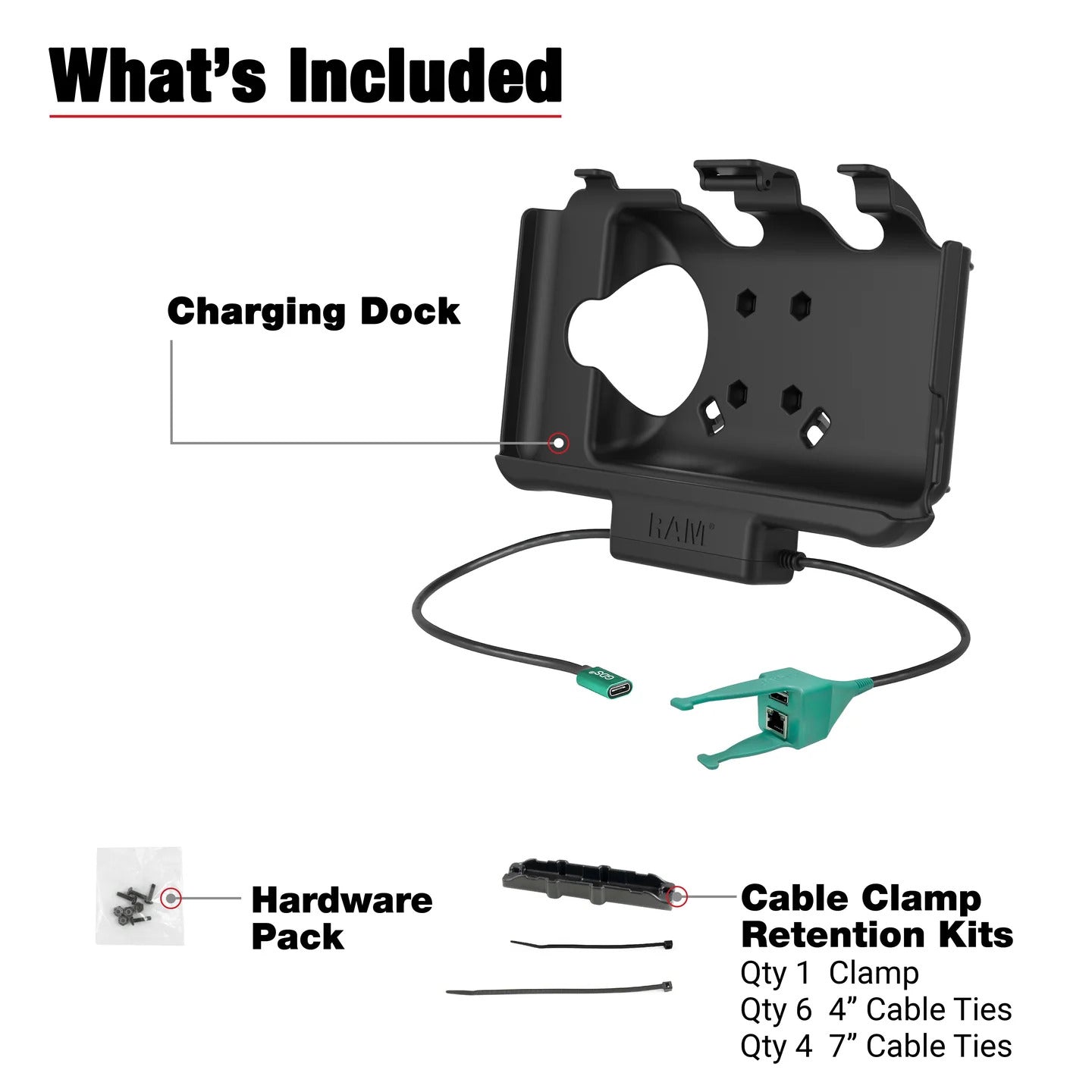

Package Content

  • 1 x RAM USB-C Powered Dock + USB-A & RJ45 Data for Samsung Tab Active5 & 3 (RAM-HOL-SAM60CP-RJ45AU)
