Universal Marine Mount with Short Arm

Universal Marine Mount with Short Arm

RAM-B-111U-A
$71.00 AUD
$71.00 AUD
Sale Sold out
Tax included.

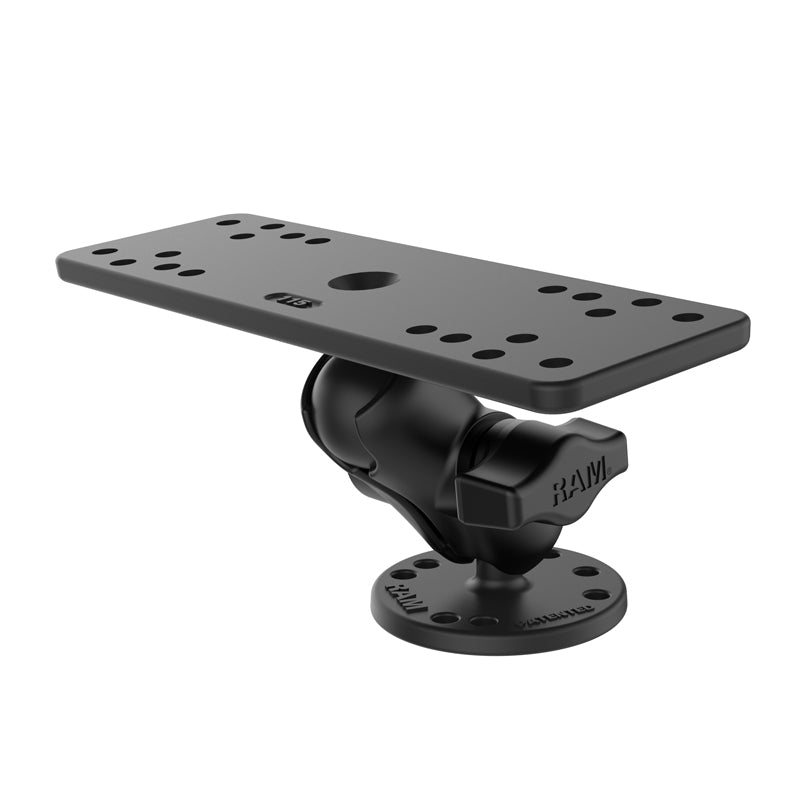

The RAM-B-111U-A consists of a short double socket arm, a 2.5" diameter round base and a 6.25" x 2" rectangle base. The round base contains pre-drilled holes, including the universal AMPS hole pattern. The rectangle base contains different combinations of pre-drilled holes which will match up to many electronic devices and mounts, including Marine GPS, CB Radios, Ham Radios, Gimbal Brackets and more.

Features

  • Complete flat surface, a drill-down mounting solution with an overall height of 3.75"
  • RAM® Mounts ball and socket technology allows for near-infinite adjustability
  • Made of Powder-coated, marine-grade aluminium for durability and reliability in the most demanding marine environments
  • Backed by a lifetime warranty

Tech Specs

  • Product Dimensions: Overall Height: 3.75"
  • Socket to Socket Length: 1.75"
  • Hole Pattern: 4-Hole AMPS (1.181" x 1.496"), 3-Hole 120-Degree (1.812" Diameter), See Drawing
  • Plate Size: Top Plate: 6.25" x 2.5", Bottom Plate: 2.5" Diameter
  • Ball Size: B Size (1")
  • Weight Capacity: Standard Use: 2 lbs, Heavy-Duty Use: 1 lb
  • Materials: Marine-Grade Aluminum
  • Packaging Type: Poly Bag
  • Weight: 0.62 lb
  • Additional Information: This plate serves as a universal mounting bracket with multiple mounting hole locations. For some applications, additional holes may need to be drilled to ensure proper fit with your electronic device.

Compatibility

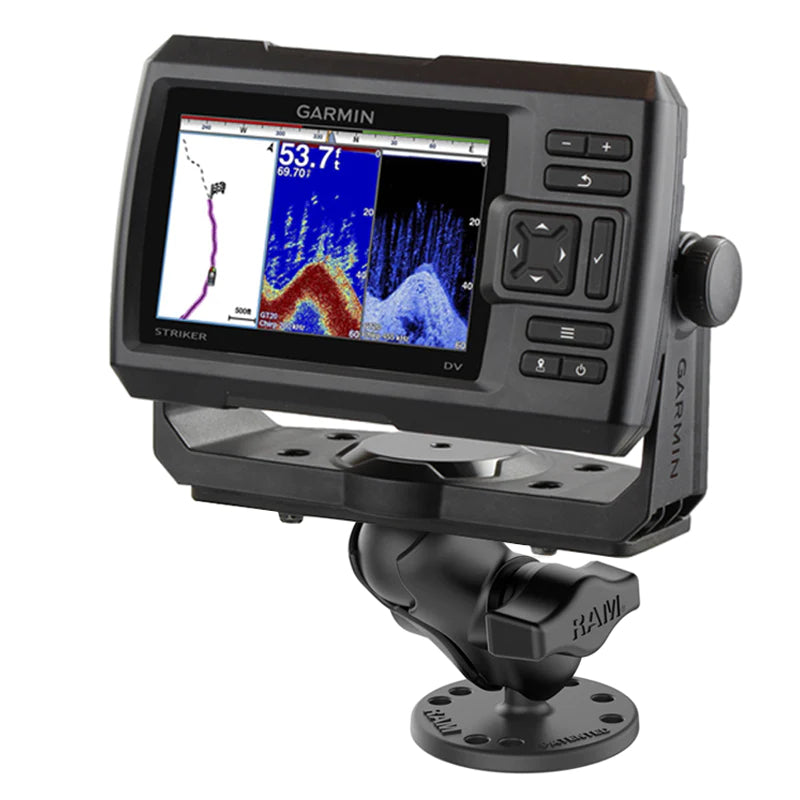

  • Garmin: GPSMAP 162, GPSMAP 168, GPSMAP 175, GPSMAP 180, GPSMAP 180C, GPSMAP 182, GPSMAP 185, GPSMAP 188, GPSMAP 232, GPSMAP 238, Striker 5 Series, Striker Plus 5cv, Striker Vivid 5cv

Package Content

  • 1 x RAM® Universal Marine Electronic Mount - B Size Short (RAM-B-111U-A)
